Pyrobox Power Distribution Center
Pyrobox Power Distribution Center
Automatic control and power distribution boxes for deicing and snow melting with integrated electronic controller with backlit LCD display (PYROCON19) and connection to Aerial, Upper limit and 3rd party sensors.
Pyrobox1 series
A "Plug and Play" controller and electrical panel for deicing and snow melting applications.
PYROBOX1-120 - Power management electrical box - 1x2 Poles 30A / 120V contactor with Ground Fault for snowmelting.
PYROBOX1-120-OD - Power management electrical box for exterior installation - 1x2 Poles 30A / 120V contactor with Ground Fault for snowmelting.
PYROBOX1-120-AB-OD - Power management electrical box for exterior installation and B.M.S. - 1x2 Poles 30A / 120V contactor with Ground Fault for snowmelting.
PYROBOX1-240 - Power management electrical box - 1x2 Poles 30A / 240V contactor with Ground Fault for snowmelting.
PYROBOX1-240-OD - Power management electrical box for exterior installation - 1x2 Poles 30A / 240V contactor with Ground Fault for snowmelting.
PYROBOX1-240-AB-OD - Power management electrical box for exterior installation and B.M.S. - 1x2 Poles 30A / 240V contactor with Ground Fault for snowmelting.
Power boxes 3 - 3C - 5 with PYROCON19 controller:

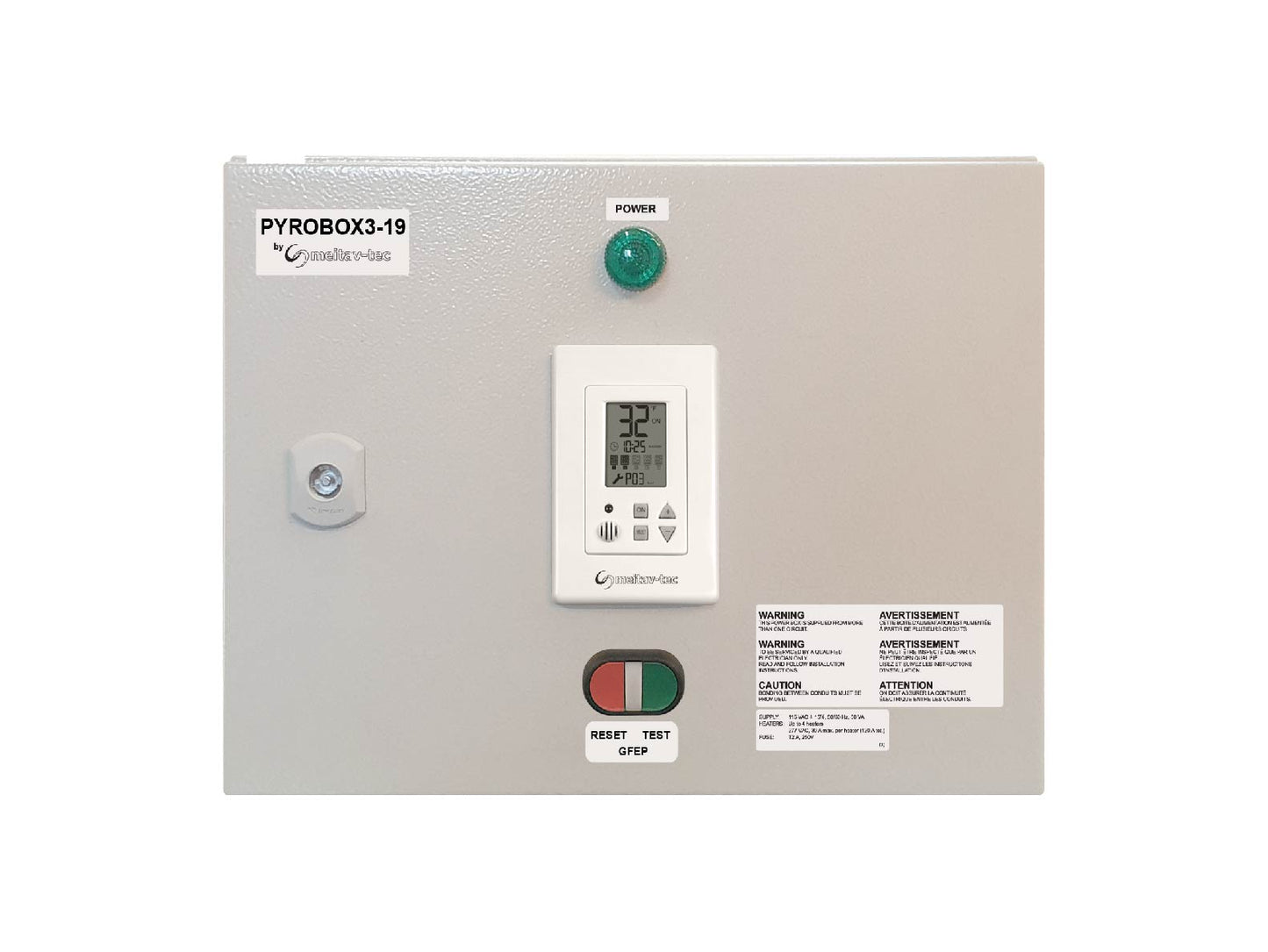

PYROBOX3/19 - Power panel, 4 contactors 30-A/ 208-240-277-V, with adjustable GFEP 30 mA ground leakage protection for snow melting, including Pyrocon19 controller and PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX3/19-DR - Power panel, 4 contactors 30-A/ 208-240-277-V, with adjustable GFEP 30 mA ground leakage protection for snow melting, including Pyrocon19-DR controller and freeze standby plus a PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX3/19-Trace - Power panel, 4 contactors 30-A/ 208-240-277-V, with adjustable GFEP 30 mA ground leakage protection for snow melting, including Pyrocon19 Trace controller and PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX3C/19 - Power panel, 2 x 50-A/3-ph/208-480-600-V contactors + 1 x 30-A/208-240-277-V contactor, with adjustable GFEP 30 mA ground leakage protection for cast iron including the Pyrocon19 controller and PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX3C/19-DR - Power panel, 2 x 50-A/3-ph/208-480-600-V contactors + 1 x 30-A/208-240-277-V contactor, with adjustable GFEP 30 mA ground leakage protection for cast iron including the Pyrocon19-DR controller and freeze standby plus a PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX3C/19-Trace - Power panel, 2 x 50-A/3-ph/208-480-600-V contactors + 1 x 30-A/208-240-277-V contactor, with adjustable GFEP 30 mA ground leakage protection for cast iron including the Pyrocon19 Trace controller and PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX5/19 - Power panel, 4 contactors 50-A/3-ph/208-480-600-V + 1 contactor 30-A/208-240-277-V, with adjustable ground leakage protection GFEP 30 mA for cast iron snow, including the Pyrocon19 controller and the PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX5/19-DR - Power panel, 4 contactors 50-A/3-ph/208-480-600-V + 1 contactor 30-A/208-240-277-V, with adjustable ground leakage protection GFEP 30 mA for cast iron snow, including Pyrocon19-DR controller and the PyroULS probe. With Modbus/Bacnet communication capability.
PYROBOX5/19-Trace - Power panel, 4 contactors 50-A/3-ph/208-480-600-V + 1 contactor 30-A/208-240-277-V, with adjustable ground leakage protection GFEP 30 mA for cast iron snow, including the Pyrocon19 Trace controller and the PyroULS probe. With Modbus/Bacnet communication capability.
